LASER GASES
It is a special gas that is generally of high purity used in laser cutting. The laser gases in laser cutting are supplied to the machine either in separate cylinders or mixed in predetermined ratios. They are mixtures of high purity gases suitable for cutting quality in carbon laser machines.
It consists of high purity carbon dioxide, high purity helium, and high purity nitrogen gas mixtures.
| HIGH PURITY | PURITY (%) | H₂O (ppm) | O₂ (ppm) |
| N₂, He | 99,999 | <2 | <2 |
Laser Gases Supply Options
| GAS TYPE | VOLUME (Liters) |
| Laser Gas (CO₂+He+N) | 40 |
| Laser Gas (CO₂+He+N) | 50 |
| GAS CODE | GAS CONTENT |
| Laser 1 | %12 CO₂ + %12 N₂ + Balance Helium |
| Laser 2 | %3,4 CO₂ + %15,6 N₂ + Balance Helium |
| Laser 3 | %4,5 CO₂ + %14,5 N₂ + Balance Helium |
| Laser 4 | %5 CO₂ + %25 N₂ + Balance Helium |
| Laser 5 | %2 CO₂ + %23,4 N₂ + Balance Helium |
| Laser 6 | %3 CO₂ + %24 N₂ + Balance Helium |
| Laser 7 | %5 CO₂ + %33 N₂ + Balance Helium |
| Laser 8 | %2,5 CO₂ + %32 N₂ + Balance Helium |
| Laser 9 | %3 CO₂ + %30 N₂ + Balance Helium |
| Laser 10 | %4 CO₂ + %60 N₂ + Balance Helium |
| Laser 11 | %4 CO₂ + %68 CO₂ + %28 He + Balance Nitrogen |
| Laser 12 | %4,5 CO₂ + %27 N₂ + Balance Helium |
| Laser 13 | %3 CO₂ + %30 N₂ + Balance Helium |
| Laser 14 | %6 CO₂ + %32 N₂ + Balance Helium |
| Laser 15 | %4 CO₂ + %68 CO₂ + %28 He + Balance Nitrogen |
Areas of Use

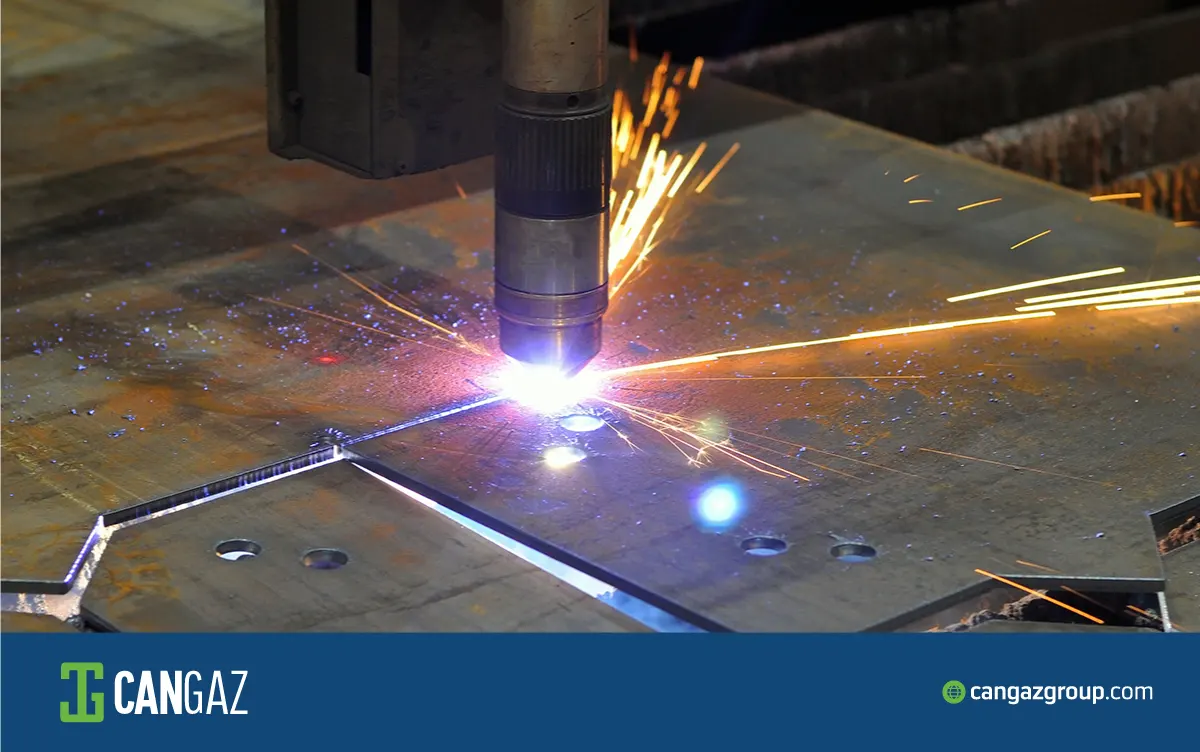

- Used to prevent oxidation and slag formation during the cutting of materials such as stainless steel, high alloy steel, etc.
- As a cooling and cleaning gas in laser cutting machines
- To protect against oxidation in laser sintering machines
- In fire extinguishing systems
- For sterilization and to preserve food
- To enhance the gas content and flavor of beverages.
